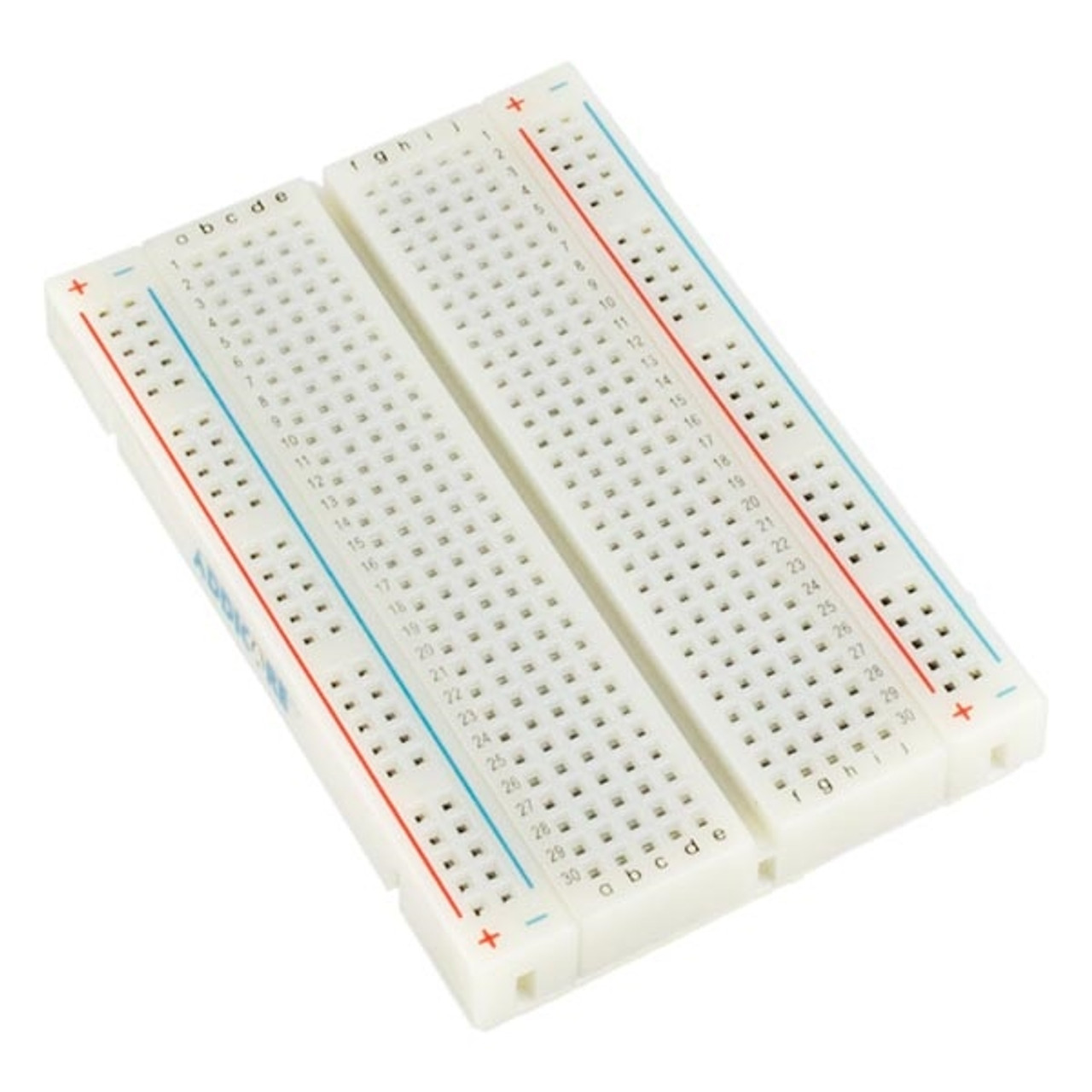

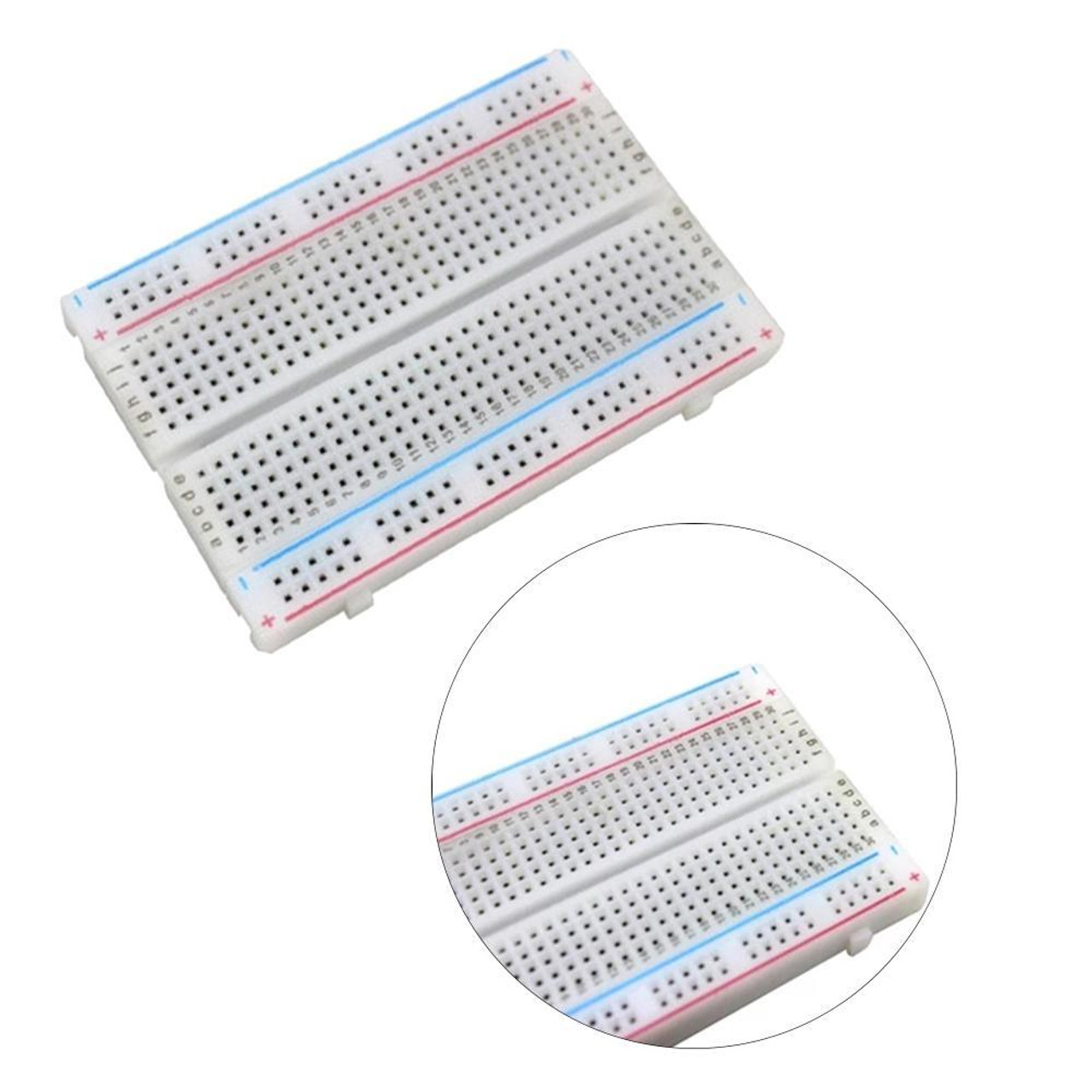

Breadboard mini 400pts
Roll over image to zoom in
KSh500.00
Specifications
| Hole Spacing | 2.54mm (0.1") |
| Acceptable Pin Sizes | 29-21 AWG |
| Contacts | 2.54mm (0.1") |
| Material | Nickel plated brass |
| Rated Amperage | 2A |
| Dimensions* | |
| Length | 82.55mm (3.25") |
| Width | 54.61mm (2.15") |
| Height | 8.38mm (0.33") |
| Weight | 40g (1.41oz) |
Features:
400 total tie-points:
-300 general prototyping tie-points
-2 columns of 30 rows of 5 interconnected tie-points
-100 power rail tie-points
-2 pairs of positive and negative power rails, one pair on each side of the breadboard
-25 interconnected tie-points per rail
The two columns have a 0.3″ (7.62mm) separation which allows for easy placement of DIP style package ICs
Board-to-board side connectors on all four sides allow you to connect multiple breadboards together to form larger breadboards
-The power rail pairs are attached to the main board with the same board-to-board connectors
-You can remove the power rails from the main breadboard and cut the adhesive foam backing to make a smaller breadboard and independent power rail pairs
Peel away paper protected self-adhesive foam backing to mount to projects or mounting plates
-300 general prototyping tie-points
-2 columns of 30 rows of 5 interconnected tie-points
-100 power rail tie-points
-2 pairs of positive and negative power rails, one pair on each side of the breadboard
-25 interconnected tie-points per rail
The two columns have a 0.3″ (7.62mm) separation which allows for easy placement of DIP style package ICs
Board-to-board side connectors on all four sides allow you to connect multiple breadboards together to form larger breadboards
-The power rail pairs are attached to the main board with the same board-to-board connectors
-You can remove the power rails from the main breadboard and cut the adhesive foam backing to make a smaller breadboard and independent power rail pairs
Peel away paper protected self-adhesive foam backing to mount to projects or mounting plates
